ACCUNIQ BC 720



Body Composition Analyzers



Studies comparing Accuniq with the gold standard for body water
measurement show extremely high accuracy (correlation coefficient R=0.97)
Reappearance Rate (correlation coefficient R=0.99)

Source: Validity of total body water in impedance (X-SCAN)

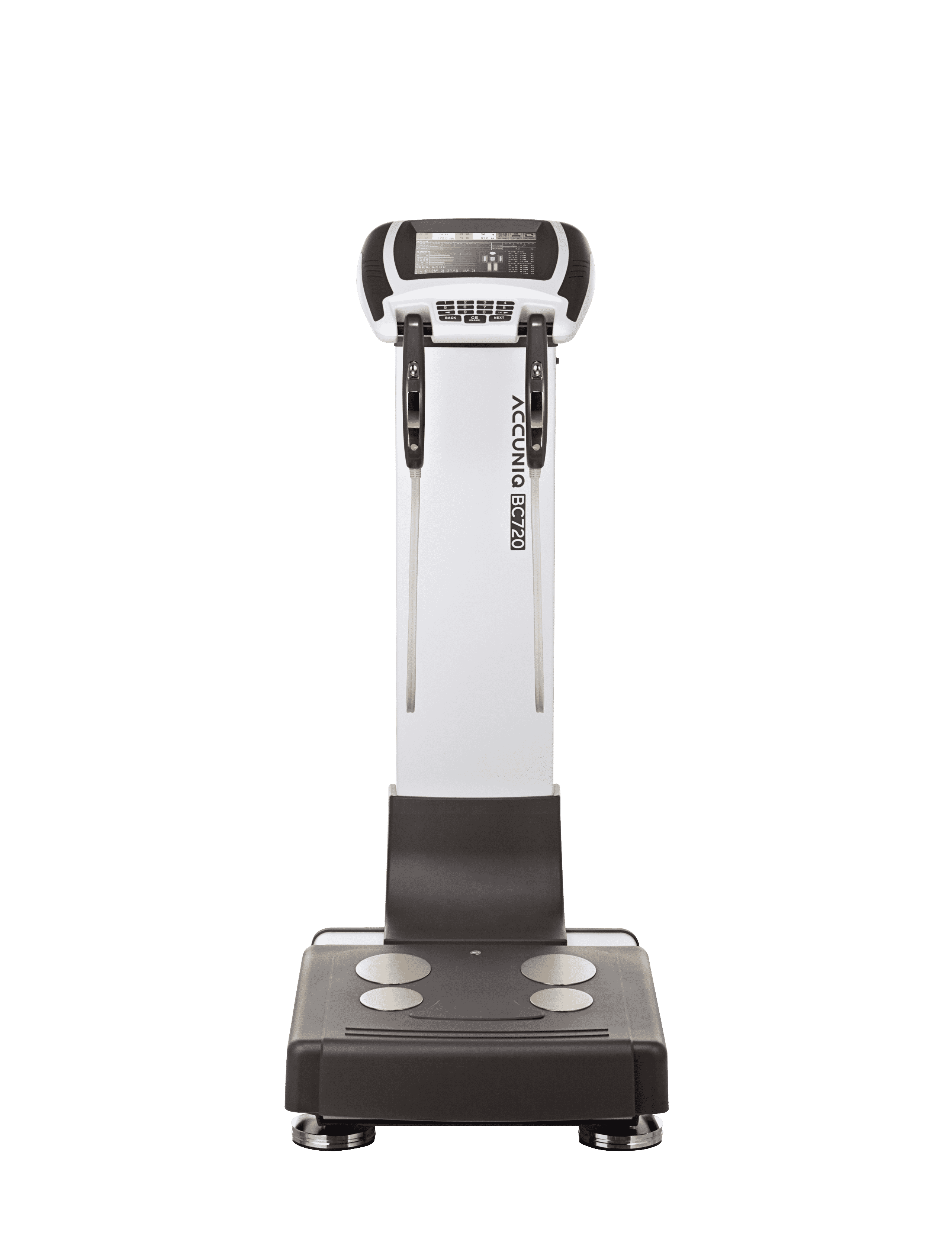

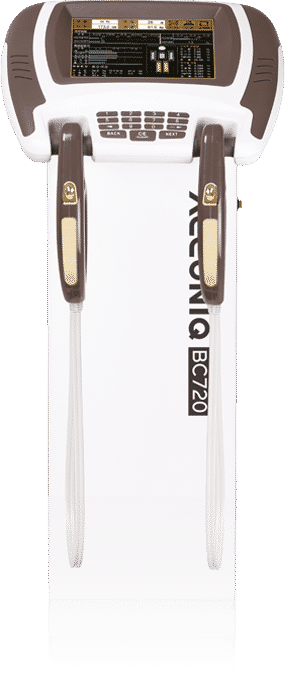

ACCUNIQ BC720

เครื่องวัด วิเคราะห์ส่วนประกอบร่างกาย ไขมัน Accuniq BC720

The BC-720 offers all of the features and functions needed for superior diagnosis of body composition including muscle structure and abdominal obesity that lead to improved treatment for all body types.

เครื่องวัด วิเคราะห์ส่วนประกอบร่างกาย ไขมัน Accuniq bc720
Model ACCUNIQ BC720
Measuring method Tetra-polar electrode method using 8 touch electrodes
Frequency range 1, 5, 50, 250, 550, 1000kHz
측정부위 Measuring site Whole body and Parts of body (arms, legs, and torso)
Result item Body Composition ResultWeight, Standard weight, Lean body mass, Mass of body fat, Subcutaneous fat mass, Skeletal muscle mass, Soft lean mass, Protein mass, Mineral mass, Total body water, Intracellular water, Extracellular water, Body mass index, Percentage of body fat, Ratio of E.C.W./T.V.W., Waist to hip ratio, Visceral fat level, Visceral fat mass, Visceral fat area, Prediction of abdominal fat, Target to Control (Control of Body fat, Control of Soft lean mass, Control of Weight), Body composition change (8 times accumulated graph of Ratio of E.C.W./T.B.W., Percentage of body fat, Soft lean mass, Weight), Segmental dual graph of soft lean mass, Body type, Body cell mass, Basal metabolic rate, Total energy expenditure, Age matched of body, phase angle, Study item (Segmental impedance classified by frequency), Blood pressure (in case of being connected with a blood pressure monitor), QR codeSegmental ResultSegmental total body water, Segmental intracellular water, Segmental extracellular water, Segmental E.C.F./T.B.F., Segmental soft lean mass, Segmental mass of body fat and percent, Study item (Segmental impedance classified by frequency)Result sheet for children (Option)Weight, Standard weight, Lean body mass, Mass of body fat, Subcutaneous fat mass, Skeletal muscle mass, Soft lean mass, Protein mass, Mineral mass, Total body water, Intracellular water, Extracellular water, Body mass index, Percentage of body fat, Waist to hip ratio, Body type, degree of obesity, Child growth curve (height, weight), Body cell mass, Basal metabolic rate, Total energy expenditure, Age matched of body, Nutritional assessment, Body composition change, Segmental soft lean mass, Segmental mass of body fat, Study item (Segmental impedance classified by frequency), QR code



Current About 180mA ±15
Power consumption 60 VA
Power supply Input (AC 100~240V, 50~60Hz), Output (DC 12V, 5A 아답터)
Display 8.4inch wide color LCD
Input device Touch screen, PC remote
Transmissible device USB port, RS-232C, Bluetooth, Wi-Fi (Option)
Printing device A4 Printer
Dimension 496 X 932 X 1182mm(W X D X H)
Weight About 42kg
Measuring range 100 ~ 950 Ω
Measuring time Within 1minute
Applicable height 50 ~ 220cm
Measuring weight 10 ~ 270kg
Applicable age 1 ~ 99세
Operation ambient Ambient temperature range 5~40℃, Relative humidity range 15~93% (non condensing)
Storage ambient Ambient temperature range -25~70℃, Relative humidity range lower than 93% RH
เครื่องวัด วิเคราะห์ส่วนประกอบร่างกาย ไขมัน Accuniq bc720

Product details

· Frequency range: 1, 5, 50, 250, 550, 1000kHz
· Measurement site: Measurement by whole body, site (right arm, right leg, left arm, left leg, body)
· Size: 496 X 820 X 1150mm (W x D x H ± 10mm)
· Various result sheets: body composition result sheet, result sheet (optional), pediatric result sheet (option)
· Measurement mode: Body scale mode, body composition mode
· QR code: Scan the QR code of the LCD and result sheet to send and check the measurement result to the management website

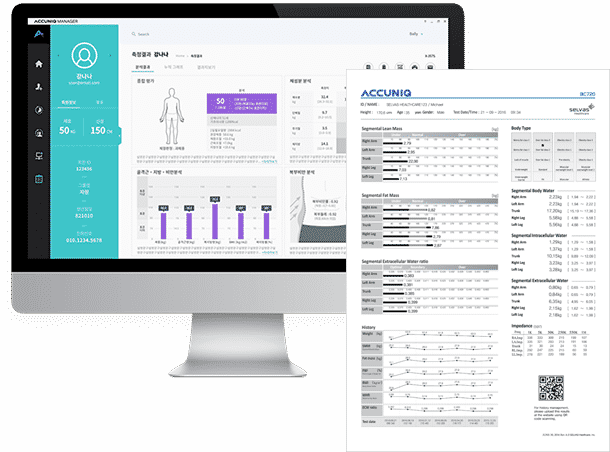

PLUS ACCUNIQ MANAGER



All New ACCUNIQ Manager Client Tracking System
Connect Clients to Test Results
Print/Email Test Results
Complete Chart and Graph Analysis
Works on Individual Devices and Servers



MANAGER PLUS


Web Based Tracking for Clinics and Health Clubs

เครื่องวัด วิเคราะห์ส่วนประกอบร่างกาย ไขมัน Accuniq bc720 result sheet

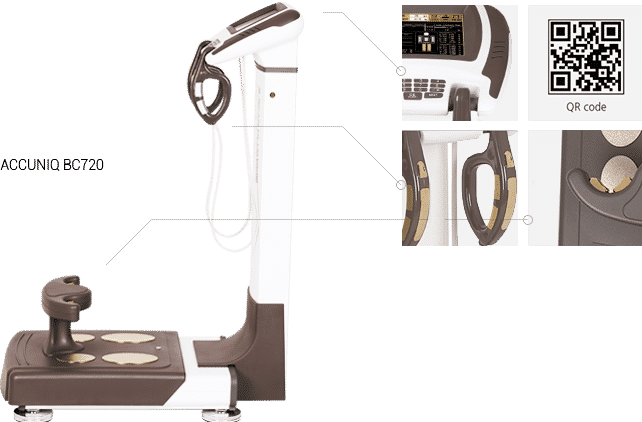

BC-720 Features

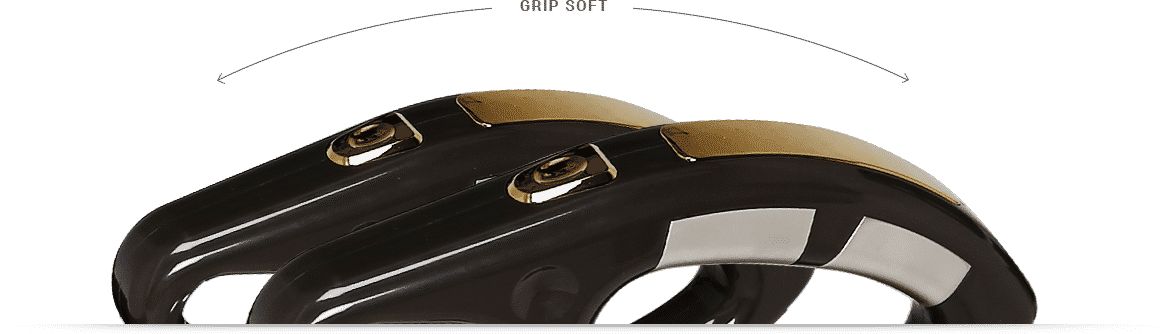

6 Frequency 8 Touch contacts
Muscle Mass Analysis Segmental *Skeletal Muscle-Soft Lean Mass-Fat Free Mass
and healthy ranges

Obesity Analysis SegmentalSubcutaneous Fat-Visceral Fat-Visceral Fat Area

Body Water AnalysisIntracelluar-Extracellular Water-% Water Segmental
Phase Angle/Reactance/Impedance Measurements

Control GuideBMR-TEE-Results Analysis-Total Score

Full 10” Color Touch Screen Display
QR Code Scan for Mobile Devices
Bluetooth Communication
Store 100.000 Measurements

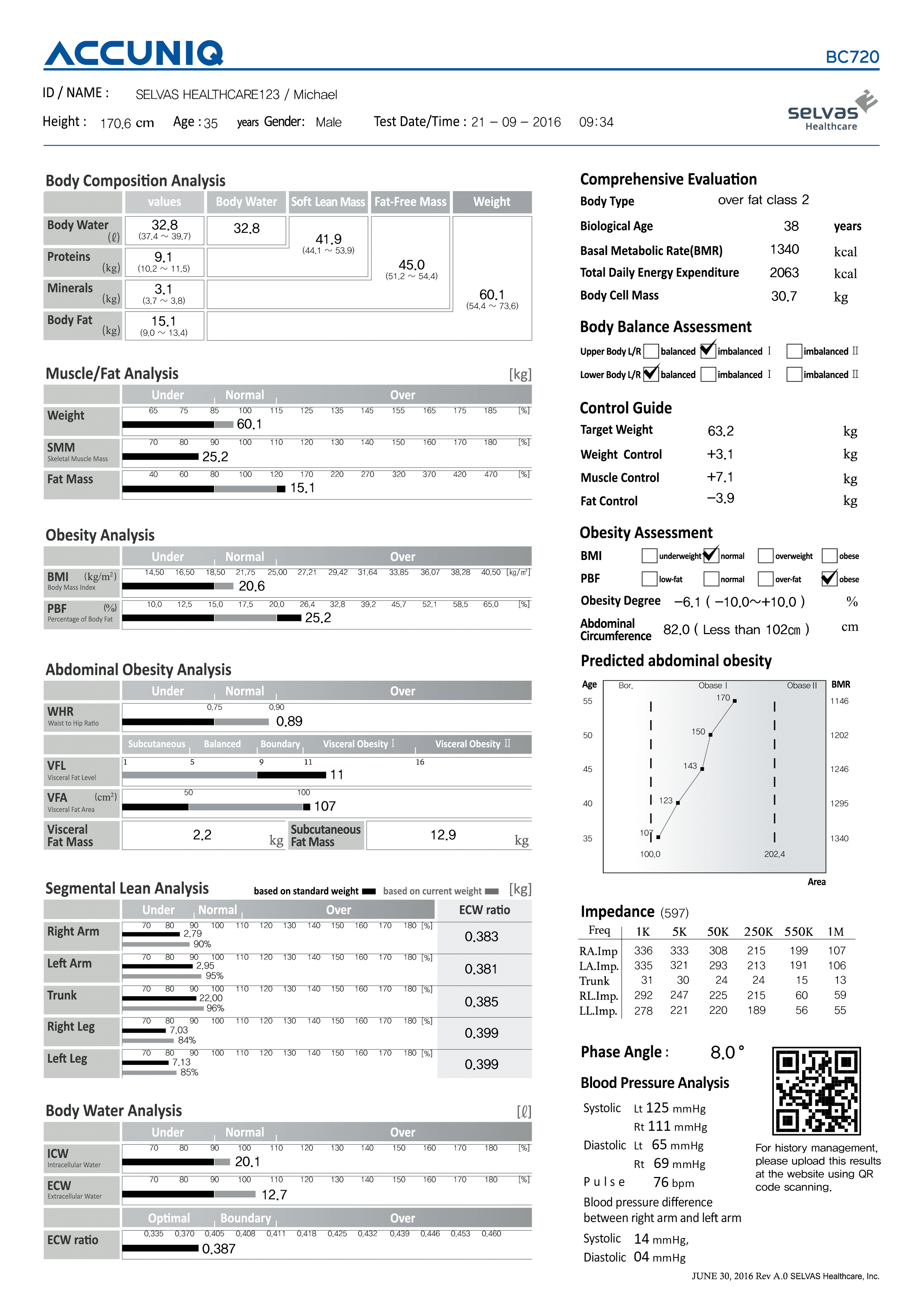

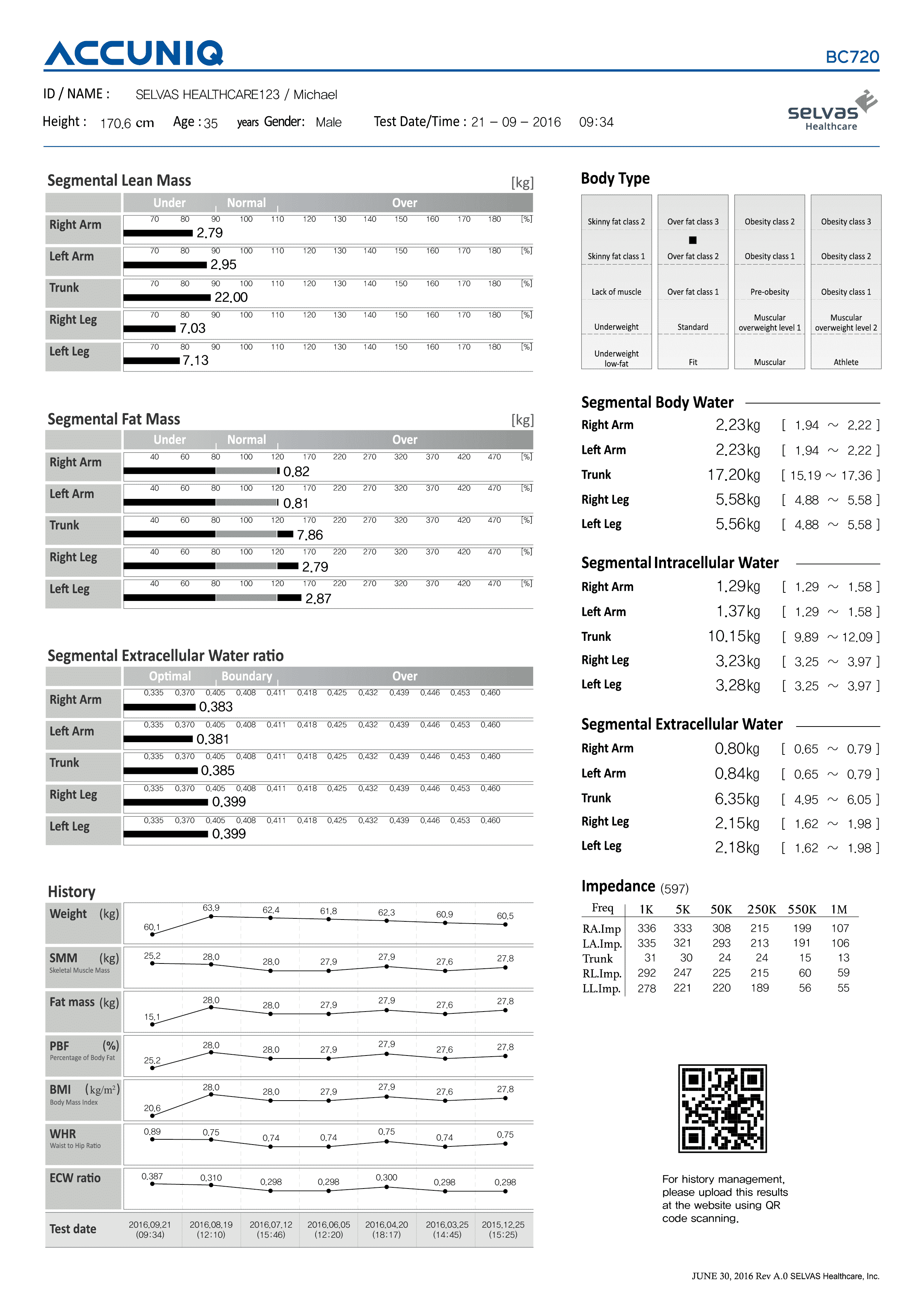

Result Sheet

เครื่องวัด วิเคราะห์ส่วนประกอบร่างกาย ไขมัน Accuniq bc720 result sheet
เครื่องวัด วิเคราะห์ส่วนประกอบร่างกาย ไขมัน Accuniq bc720 result sheet

1.Body composition analysis

It shows the measurement results and normal range of body water, protein, minerals and body fat that make up our body.

2. Skeletal muscle / fat analysis

You can see the ratio of skeletal muscle and body fat that contribute to the body weight, by displaying the weight, skeletal muscle mass, and body fat mass graphically.

3. Obesity analysis

It shows the graphs of body mass index and body fat percentage, which are important items in the evaluation of obesity.

4. Abdominal obesity analysis

The fat of the human body consists of subcutaneous fat and visceral fat. Evaluate various items about visceral fat that are closely related to adult diseases.

5. Muscle analysis

Two graphs show muscle mass assessments of the five parts of the body (left arm, right arm, left leg, right leg, torso).

6. Body water analysis

We evaluate the intracellular water, extracellular water, and extracellular secretion.

7. Overall evaluation

Body type determination, body age, basal metabolic rate, calories needed per day, and cell volume.

8. Body Balance Assessment

It evaluates the left and right balance of the upper body of the human body and the balance of the lower body left and right. It evaluates whether the human body is balanced right or left rather than a lot of muscle or fat.

9. Weight control

Suggested adjustments for recommended weight, weight, muscle, and fat.

10. Obesity Assessment

B.M.I. and body fat percentage can be evaluated in low-level, standard, overweight, and obesity levels, and obesity and abdominal circumference can be identified.

11. Abdominal Obesity Predictability

Based on the results of abdominal obesity analysis and body composition analysis of the subject, it is a chart to predict abdominal obesity as the age increases with the present abdominal obesity status.

12. impedance

Indicates frequency and area specific impedance. Impedance is the resistance value that occurs when current is applied to the human body. Each impedance has a unique value.

13. Blood Pressure Analysis

When connecting the sphygmomanometer provided by ACCUNIQ, the measured blood pressure data is displayed. Obesity and blood pressure can be evaluated at the same time, which is useful for diagnosis.
